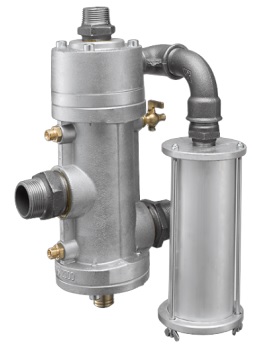

RMS-2000B 1 1/2" Remote Control with Suppressor

RMS-2000B 1 1/2" Remote Control with Suppressor

The RMS-2000B is a very high airflow remote control where pressure loss is limited to the minimum. The result is a shortening of the airing time in the blast pot and a much shorter stopping time of the blast process.

Blasting pressure 3 < > 12 bar

Operating temperature -15°C < > +50°C

AIR VOLUME IN M³/MIN

nozzle orifice 3,5 bar 4,2 bar 4,9 bar 5,6 bar 6,3 bar 7,0 bar 8,6 bar 10,3 bar

5 mm 3/16“ 0,73 0,84 0,92 1,06 1,15 1,26 1,54 1,82

6,5 mm ¼” 1,31 1,51 1,71 1,9 2,08 2,27 2,75 3,22

8 mm 5/16“ 2,16 2,5 2,83 3,16 3,53 3,84 4,71 5,57

9,5 mm 3/8” 3,02 3,53 4 4,5 4,85 5,5 6,64 7,79

11 mm 7/16” 4,12 4,76 5,44 6,09 6,73 7,11 8,8 10,48

12,5 mm ½” 5,46 6,28 7,06 7,85 8,65 9,46 11,46 13,45
