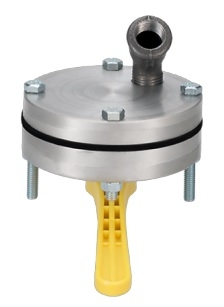

Metering Valve MP 1/2"
The MP-1/2” is a manual Valve that allows fine metering of the abrasive media for small blast machines. It belongs to the latest generation and it excels by its ruggedness. Every abrasive media can be used with this valve and it has a scale for reproducible settings.
Area of application SCW-1028 and -1628 blast machine
Abrasive media suitable for every common media
Blasting pressure 0 < > 12 bar
Operating temperature -15°C < > +50°C
AIR VOLUME IN M³/MIN
nozzle orifice 3,5 bar 4,2 bar 4,9 bar 5,6 bar 6,3 bar 7,0 bar 8,6 bar 10,3 bar
5 mm 3/16“ 0,73 0,84 0,92 1,06 1,15 1,26 1,54 1,82
6,5 mm ¼” 1,31 1,51 1,71 1,9 2,08 2,27 2,75 3,22
8 mm 5/16“ 2,16 2,5 2,83 3,16 3,53 3,84 4,71 5,57
9,5 mm 3/8” 3,02 3,53 4 4,5 4,85 5,5 6,64 7,79
11 mm 7/16” 4,12 4,76 5,44 6,09 6,73 7,11 8,8 10,48
12,5 mm ½” 5,46 6,28 7,06 7,85 8,65 9,46 11,46 13,45
