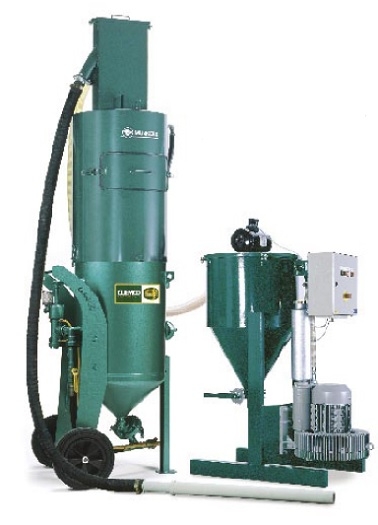

MB 220 - E 3 - compact vacuum machine used abrasive cleaning and assembly.
Equipment:
Vacuum pump with 5.5 kW electric motor
Dust catcher with a self-cleaning filter and air receiver
Electric pump (unit combined) control panel
Abrasive separator tank (capacity - 200l) with observation hatches, blasting machine is compatible with Clemco SCW - 2452
Ciclone used abrasive hopper, set the network drive (built into the work room floor)
Vacuum Hose 2 "(50mm) connecting the pump and separator - 2-3 m
And a transport tube 2 "(from the ciclone to the separator tank) - 3-4 m
Hoses suction nozzle
Connection fittings for hoses
Pre-treatment cascade unit (ordered separately)
Technical characteristics:
Productivity (abrasive cleaning) up to 4 t / h.
The quantity of air (vacuum pump) 220 m³ / h
Maximum allowable intake hose length to 10 m.
Electricity supply 3х400 V, 50 Hz
Use current / Max current 11А/25А
Electric motor power 5.5 kW
The maximum vacuum of 270 mbar
Filter size and material (polyester) 2.5 m2
Dust concentration at the outlet of the filter (up to) 5 mg/m3
Pump noise level of 72 dB
weight 295 kg
Code: MUNKEBO MB 220
