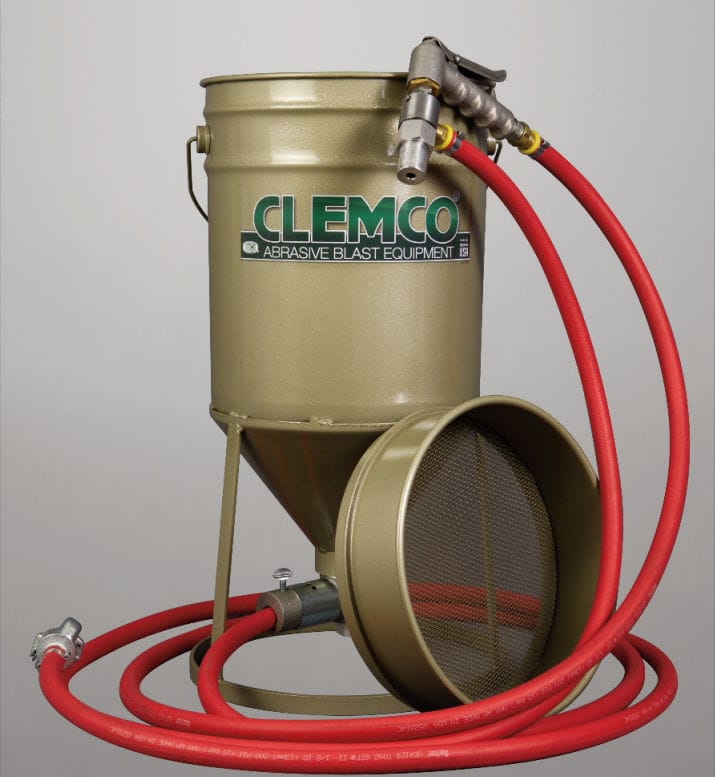

SG-300 Portable Suction Blast Gun with Hopper
Purpose
The SG-300 is a suction blast system designed for abrasive blasting where the air supply is limited, or where low pressure blasting is necessary to protect delicate parts or soft surfaces.
Perfect for
• On-site glass & stone engraving
• Small paint stripping jobs
• Touch-up work after big jobs
• Farms, welding & machine shops, and home hobbyists
• Perfect for rental outlets
The SG-300 uses compressed air and abrasive to quickly clean and etch metal, masonry, glass, and other durable surfaces. You select the abrasive type, blast pressure, and nozzle size you need to create intricate works of art or just make fast work of a rusted fender.
Requirements for Operation
These items are required but not included with the SG-300.
• Clean, dry compressed air of sufficient volume to maintain pressure at the blast gun, see table. Volume required will depend on application and desired production rate.
• Air-fed respirator suitable for abrasive blasting.
• Blast media – The versatile suction blast system handles most fine abrasives. Consult your Clemco distributor for appropriate media selection. As NIOSH recommends, do not use silica
sand or any abrasive that contains more than trace amounts (more than 1%) of free silica for abrasive blasting. The rugged, all-metal hopper holds about 1 cubic foot (or one bag) of abrasive, to let you blast for extended periods without stopping to refill.
Description
The SG-300 system includes the hopper with abrasive metering mechanism, removable abrasive screen, 10 feet of air hose and media hose, trigger-control blast gun, air jet, and long-lasting tungsten carbide nozzle.
Description of Operation
The operator controls blasting with a handle at the nozzle. Pressing the handle starts blasting, releasing it stops blasting. The hopper contains abrasive and meters it into the media hose. Air rushing through the suction gun’s mixing chamber draws blast media into the airstream and propels it out the nozzle.
Advantages
• Uses just a fraction of the air required by an industrial pressure blast machine
• Different size air jets let the SG-300 take maximum advantage of the available air supply
• Metering system maintains smooth, consistent media flow
• Hand-portable design goes anywhere
Approvals and Certifications
Trigger-control blast gun complies with OSHA regulation 1910.244 (b).
Code: SG-300
